[Spring Boot] RedisJSON 연동

RedisJSON 모듈은 Redis에 대한 JSON 지원을 제공하며, 다른 Redis 데이터 유형과 마찬가지로 Redis 데이터베이스에서 JSON 값을 저장, 업데이트 및 검색할 수 있습니다.

RedisJSON : https://redis.io/docs/stack/json/



1. Docker를 사용하여 Redis 설치

Docker를 사용하여 Redis를 로컬에 설치하세요.

docker run -d --name redis-stack -p 6379:6379 -p 8001:8001 redis/redis-stack:latest

포트 6379는 Redis 연결, 포트 8001는 RedisInsight에 사용됩니다.

Docker Hub : https://hub.docker.com/r/redis/redis-stack

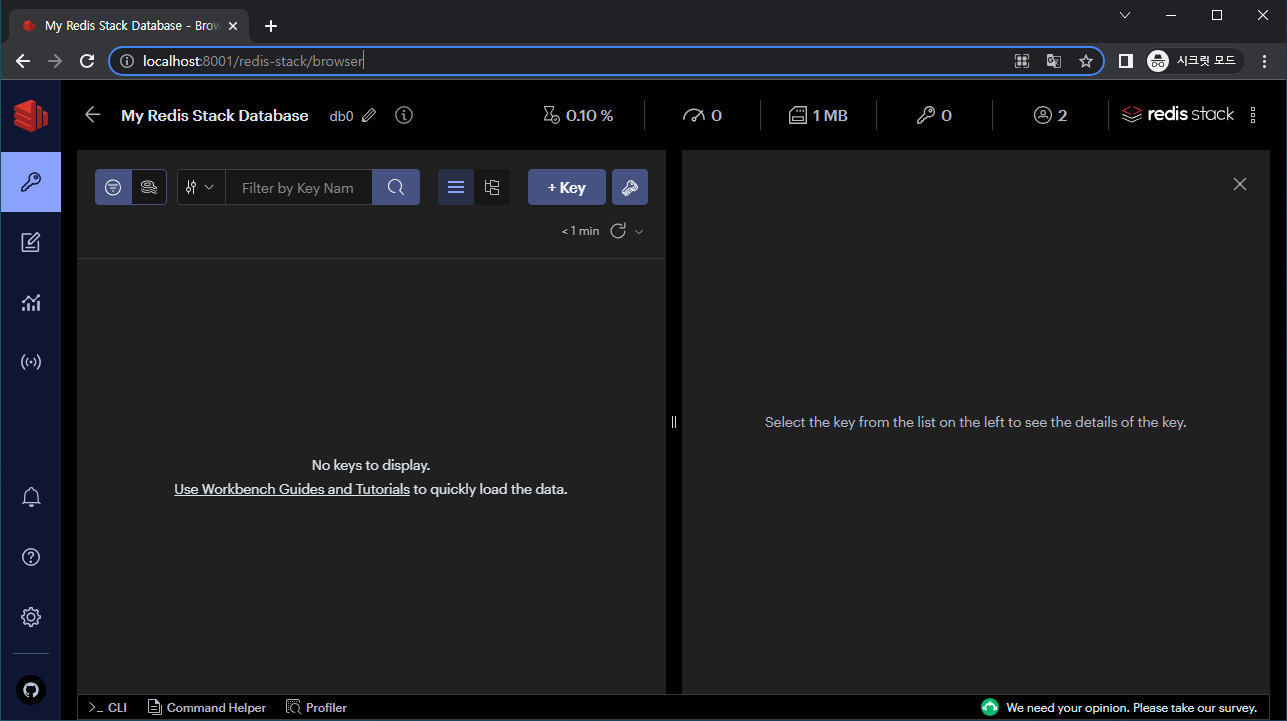

RedisInsight

RedisInsight : https://redis.com/redis-enterprise/redis-insight/



2. 의존성 추가

Redis Json 명령어를 사용하기 위해 'Jedis'를 추가하세요.

build.gradle

plugins {
    id 'java'
    id 'org.springframework.boot' version '3.2.2'
    id 'io.spring.dependency-management' version '1.1.4'
}

group = 'com.example'
version = '0.0.1-SNAPSHOT'

java {
    sourceCompatibility = '17'
}

repositories {
    mavenCentral()
}

dependencies {

    // SpringBoot
    implementation 'org.springframework.boot:spring-boot-starter-web'
    testImplementation 'org.springframework.boot:spring-boot-starter-test'

    // Redis
    implementation 'org.springframework.boot:spring-boot-starter-data-redis'

    // Jedis
    implementation 'redis.clients:jedis:5.1.0'

    // Lombok
    compileOnly 'org.projectlombok:lombok'
    annotationProcessor 'org.projectlombok:lombok'
    testCompileOnly 'org.projectlombok:lombok'
    testAnnotationProcessor 'org.projectlombok:lombok'
}

test {
    exclude '**/*'
}

Maven Repository : https://mvnrepository.com/artifact/redis.clients/jedis/5.1.0



3. RedisConfig 설정

Redis 클라이언트 라이브러리인 Jedis를 사용하여 Redis 서버와의 연결을 설정하세요.
RedisConfig.java

package com.example.jedissample.config;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.connection.RedisStandaloneConfiguration;
import org.springframework.data.redis.connection.jedis.JedisConnectionFactory;
import redis.clients.jedis.JedisPooled;

@Configuration
public class RedisConfig {

  @Value("${redis.stand-alone.host}")
  private String standAloneHost;

  @Value("${redis.stand-alone.port}")
  private String standAlonePort;


  /**
   * RedisConnectionFactory 빈을 생성
   *
   * @return RedisConnectionFactory 빈
   */
  @Bean
  public RedisConnectionFactory redisConnectionFactory() {
    return new JedisConnectionFactory(
        new RedisStandaloneConfiguration(standAloneHost, Integer.parseInt(standAlonePort)));
  }

  /**
   * RedisConnectionFactory를 사용하여 JedisPooled 빈을 생성
   *
   * @param redisConnectionFactory RedisConnectionFactory
   * @return JedisPooled 빈
   */
  @Bean
  public JedisPooled jedisPooled(RedisConnectionFactory redisConnectionFactory) {
    JedisConnectionFactory jedisConnectionFactory =
        (JedisConnectionFactory) redisConnectionFactory;
    return new JedisPooled(
        jedisConnectionFactory.getPoolConfig(),
        jedisConnectionFactory.getHostName(),
        jedisConnectionFactory.getPort());
  }
}



4. RedisComponent 설정

Redis에 데이터 조회 및 저장을 위해 JedisCluster 객체를 사용하여 메서드를 구현하세요.
RedisComponent.java

package com.example.jedissample.component;

import com.fasterxml.jackson.databind.ObjectMapper;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Component;
import org.springframework.util.ObjectUtils;
import redis.clients.jedis.JedisPooled;
import redis.clients.jedis.json.Path;

@Slf4j
@RequiredArgsConstructor
@Component
public class RedisComponent {

  private final JedisPooled jedisPooled;

  /**
   * Redis에 객체를 JSON 형식으로 저장
   *
   * @param key     Redis 키
   * @param t       저장할 데이터 객체
   * @param seconds 만료 시간(초)
   * @param <T>     데이터 객체의 유형
   */
  public <T> void setJson(String key, T t, long seconds) {
    jedisPooled.jsonSetLegacy(key, t);
    jedisPooled.expire(key, seconds);
  }

  /**
   * Redis에서 키를 사용하여 저장된 객체를 조회
   *
   * @param key   Redis 키
   * @param clazz 검색할 데이터 객체의 클래스 유형
   * @param <T>   검색할 데이터 객체의 유형
   * @return Redis에서 검색한 데이터 객체
   */
  public <T> T getJson(String key, Class<T> clazz) {
    return jedisPooled.jsonGet(key, clazz);
  }


  /**
   * 키와 경로를 사용하여 Redis에서 저장된 객체를 조회
   *
   * @param key  Redis 키
   * @param path 가져올 데이터 객체의 경로
   * @return Redis에서 검색한 데이터 객체
   */
  public Object getJson(String key, Path path) {
    return jedisPooled.jsonGet(key, path);
  }


  /**
   * Redis에서 저장된 JSON 배열을 조회
   *
   * @param key   Redis에서의 키
   * @param clazz 검색할 데이터 객체의 클래스 유형
   * @param path  JSON 배열의 경로
   * @param <T>   검색할 데이터 객체의 유형
   * @return 검색된 데이터 객체의 목록
   * @throws IOException JSON을 파싱하는 동안 발생할 수 있는 예외
   */
  public <T> List<T> getJsonArray(String key, Class<T> clazz, String path) throws IOException {

    List<T> list = new ArrayList<>();

    Object object = jedisPooled.jsonGet(key, new Path(path));
    if (!ObjectUtils.isEmpty(object)) {
      ObjectMapper objectMapper = new ObjectMapper();
      String jsonString = objectMapper.writeValueAsString(object);
      list = objectMapper.readValue(
          jsonString,
          objectMapper.getTypeFactory().constructCollectionType(List.class, clazz));
    }

    return list;
  }
}



5. EmployeeService 추가

EmployeeService.java

package com.example.jedissample.service;

import com.example.jedissample.component.RedisComponent;
import com.example.jedissample.dto.EmployeeDto;
import java.util.List;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;

/** *
 * EmployeeDto 객체를 Redis에 저장 및 조회
 *
 * <p>
 * Storing and Querying JSON documents using Redis Stack
 * https://developer.redis.com/howtos/redisjson/getting-started
 * </p>
 */
@Slf4j
@RequiredArgsConstructor
@Service
public class EmployeeService {

  private final RedisComponent redisComponent;

  /**
   * EmployeeDto.Info를 Redis에 JSON 형식으로 저장
   *
   * @param key          Redis 키
   * @param employeeInfo EmployeeDto.Info
   * @return EmployeeDto.Info
   */
  public EmployeeDto.Info saveEmployeeInfo(String key, EmployeeDto.Info employeeInfo) {
    redisComponent.setJson(key, employeeInfo, 60 * 5);
    return redisComponent.getJson(key, EmployeeDto.Info.class);
  }

  /**
   * EmployeeDto를 Redis에 JSON 형식으로 저장
   *
   * @param key      Redis 키
   * @param employee EmployeeDto
   * @return EmployeeDto
   */
  public EmployeeDto saveEmployee(String key, EmployeeDto employee) {
    redisComponent.setJson(key, employee, 60 * 5);
    return redisComponent.getJson(key, EmployeeDto.class);
  }

  /**
   * 키(key)를 사용하여 Redis에 저장된 객체를 조회
   *
   * @param key Redis 키
   * @return EmployeeDto
   */
  public EmployeeDto findEmployee(String key) {
    return redisComponent.getJson(key, EmployeeDto.class);
  }

  /**
   * 키(key)와 경로(path)를 사용하여 Redis에 저장된 객체를 조회
   *
   * @param key  Redis 키
   * @param path 경로
   * @return List&lt;EmployeeDto.Info&lt;
   */
  public List<EmployeeDto.Info> findEmployee(String key, String path) throws Exception {
    return redisComponent.getJsonArray(key, EmployeeDto.Info.class, path);
  }
}



6. EmployeeDto 추가

EmployeeDto.java

package com.example.redisjson.dto;

import java.util.List;
import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Getter;
import lombok.NoArgsConstructor;
import lombok.Setter;

@Getter
@Setter
@Builder
public class EmployeeDto {

  List<Info> employees;

  @Getter
  @Setter
  @Builder
  @NoArgsConstructor
  @AllArgsConstructor
  public static class Info {

    private String name;
    private String email;
    private int age;
  }
}



7. 저장 및 조회 확인

EmployeeServiceTest.java

package com.example.jedissample.service;

import static org.junit.jupiter.api.Assertions.assertFalse;

import com.example.jedissample.dto.EmployeeDto;
import com.fasterxml.jackson.databind.ObjectMapper;
import java.util.ArrayList;
import java.util.List;
import lombok.extern.slf4j.Slf4j;
import org.junit.jupiter.api.DisplayName;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.util.ObjectUtils;

@Slf4j
@SpringBootTest
class EmployeeServiceTest {

  @Autowired
  private EmployeeService employeeService;

  @Autowired
  private ObjectMapper objectMapper;

  @DisplayName("saveEmployeeInfo_EmployeeDto.Info를 Redis에 JSON 형식으로 저장")
  @Test
  void testSaveEmployeeInfo() throws Exception {

    // Given
    String key = "employee_profile";
    EmployeeDto.Info employeeInfo = EmployeeDto.Info.builder()
        .name("Paul John")
        .email("paul.john@example.com")
        .age(42)
        .build();

    // When
    EmployeeDto.Info responseEmployeeInfo = employeeService.saveEmployeeInfo(key, employeeInfo);

    // Then
    log.debug("responseEmployeeInfo: {}", objectMapper.writeValueAsString(responseEmployeeInfo));
    assertFalse(ObjectUtils.isEmpty(responseEmployeeInfo));
  }

  @DisplayName("saveEmployee_EmployeeDto를 Redis에 JSON 형식으로 저장")
  @Test
  void testSaveEmployee() throws Exception {

    // Given
    String key = "employee_info";
    List<EmployeeDto.Info> employees = new ArrayList<>();
    employees.add(EmployeeDto.Info.builder()
        .name("Alpha")
        .email("alpha@gmail.com")
        .age(23)
        .build());
    employees.add(EmployeeDto.Info.builder()
        .name("Beta")
        .email("beta@gmail.com")
        .age(28)
        .build());
    employees.add(EmployeeDto.Info.builder()
        .name("Gamma")
        .email("gamma@gmail.com")
        .age(33)
        .build());
    employees.add(EmployeeDto.Info.builder()
        .name("Theta")
        .email("theta@gmail.com")
        .age(41)
        .build());

    EmployeeDto employee = EmployeeDto.builder()
        .employees(employees)
        .build();

    // When
    EmployeeDto responseEmployee = employeeService.saveEmployee(key, employee);

    // Then
    log.debug("responseEmployee: {}", objectMapper.writeValueAsString(responseEmployee));
    assertFalse(ObjectUtils.isEmpty(responseEmployee));
  }

  @DisplayName("findEmployee_키(key)를 사용하여 Redis에 저장된 객체를 조회")
  @Test
  void testFindEmployee() throws Exception {

    // Given
    String key = "employee_info";

    // When
    EmployeeDto responseEmployee = employeeService.findEmployee(key);

    // Then
    log.debug("responseEmployee: {}", objectMapper.writeValueAsString(responseEmployee));
    assertFalse(ObjectUtils.isEmpty(responseEmployee));
  }

  @DisplayName("findEmployee_키(key)와 경로(path)를 사용하여 Redis에 저장된 객체를 조회")
  @Test
  void testFindEmployeePath() throws Exception {

    // Given
    String key = "employee_info";
    String path = "$.employees[?(@.age>20&&@.age<40)]";

    // When
    List<EmployeeDto.Info> responseEmployee = employeeService.findEmployee(key, path);

    // Then
    log.debug("responseEmployee: {}", objectMapper.writeValueAsString(responseEmployee));
    assertFalse(ObjectUtils.isEmpty(responseEmployee));
  }
}

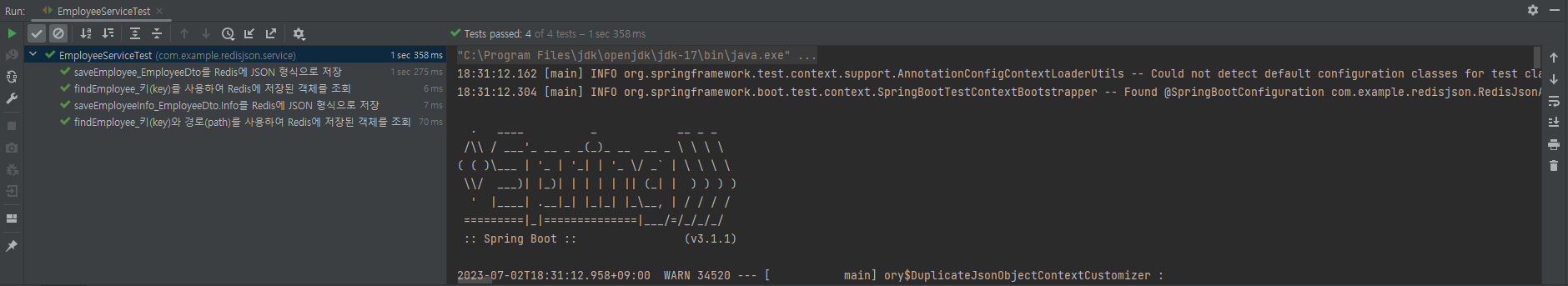

8. 콘솔 확인

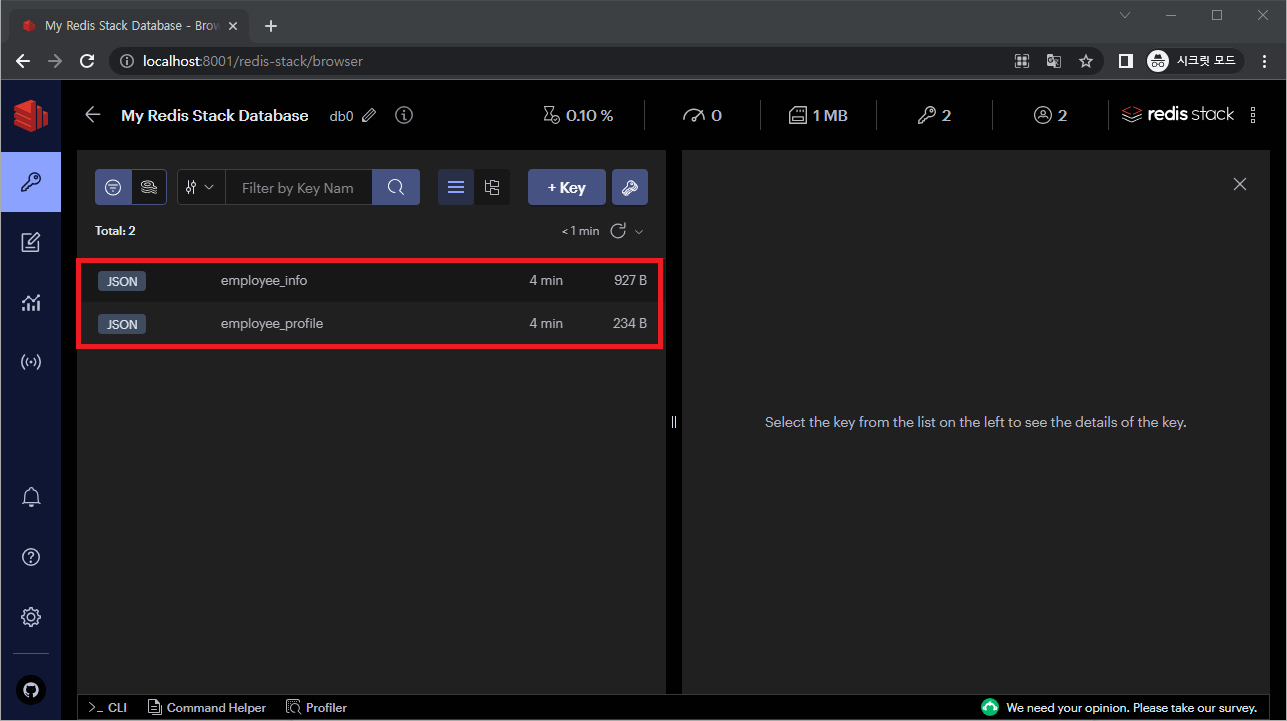

9. RedisInsight 확인



redisdeveloper : https://developer.redis.com/
