[Spring Boot] Amazon S3로 파일 업로드 및 삭제

Amazon Simple Storage Service(Amazon S3) S3란?

확장성, 데이터 가용성, 보안 및 성능을 제공하는 객체 스토리지 서비스



참조 - https://docs.aws.amazon.com/ko_kr/AmazonS3/latest/userguide/Welcome.html

Amazon S3 설정

1. 의존성 추가

Amazon S3를 사용하기 위해 spring-cloud-starter-aws 의존성을 추가하세요.

build.gradle

plugins {
    id 'java'
    id 'org.springframework.boot' version '2.7.7'
    id 'io.spring.dependency-management' version '1.0.15.RELEASE'
}

group = 'com.example'
version = '0.0.1-SNAPSHOT'
sourceCompatibility = '11'

configurations {
    compileOnly {
        extendsFrom annotationProcessor
    }
}

repositories {
    mavenCentral()
}

dependencies {

    // Spring Boot
    implementation 'org.springframework.boot:spring-boot-starter-web'
    testImplementation 'org.springframework.boot:spring-boot-starter-test'

    // Spring Cloud Starter AWS
    implementation 'org.springframework.cloud:spring-cloud-starter-aws:2.2.6.RELEASE'

    // Lombok
    compileOnly 'org.projectlombok:lombok'
    annotationProcessor 'org.projectlombok:lombok'
    testCompileOnly 'org.projectlombok:lombok'
    testAnnotationProcessor 'org.projectlombok:lombok'
}

tasks.named('test') {
    useJUnitPlatform()
}

2. 환경변수 설정

Amazon S3에 접근하기 위해 필요한 bucket, accesskey, secretKey 정보를 설정하세요.

application.yml

# SPRING 설정
spring:
  profiles:
    active: local
    group:
      local: profiles-local
      dev: profiles-dev

---
# AWS 설정
cloud:
  aws:
    region:
      static: ap-northeast-2  # AWS 기본 리전을 설정
    stack:
      auto: false # Spring Cloud를 실행하면, 서버 구성을 자동화하는 CloudFormation이 실행되는데 이를 사용하지 않으므로 false로 설정

logging:
  level:
    com:
      amazonaws:
        util:
          EC2MetadataUtils: error # 해당 클래스에서 예외가 발생하면 로그를 출력하지 않음

---
# Multipart 설정
spring:
  servlet:
    multipart:
      max-file-size: 100MB # 요청한 파일 한 개의 크기
      max-request-size: 100MB # 요청한 파일 전체의 크기

---
# LOCAL 설정
spring.config.activate.on-profile: "profiles-local"
spring:
  s3:
    bucket:
    access-key:
    secret-key:

---
# DEV 설정
spring.config.activate.on-profile: "profiles-dev"
spring:
  s3:
    bucket:
    access-key:
    secret-key:

3. Configuration 설정

Amazon S3로 접근하기 위해 필요한 AmazonS3Client 클래스를 사용하기 위해 AmazonS3ClientBuilder 클래스로 객체를 생성한 후 빈으로 등록하세요.

AmazonS3Config.java

package com.example.amazon.s3.config;

import com.amazonaws.auth.AWSStaticCredentialsProvider;
import com.amazonaws.auth.BasicAWSCredentials;
import com.amazonaws.services.s3.AmazonS3Client;
import com.amazonaws.services.s3.AmazonS3ClientBuilder;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class AmazonS3Config {

  @Value("${spring.s3.access-key}")
  private String accessKey;

  @Value("${spring.s3.secret-key}")
  private String secretKey;

  @Value("${cloud.aws.region.static}")
  private String region;

  @Bean
  public AmazonS3Client amazonS3Client() {
    BasicAWSCredentials basicAWSCredentials = new BasicAWSCredentials(accessKey, secretKey);
    return (AmazonS3Client) AmazonS3ClientBuilder
        .standard()
        .withCredentials(new AWSStaticCredentialsProvider(basicAWSCredentials))
        .withRegion(region)
        .build();
  }
}

4. 파일 업로드 및 삭제 구현

4_1. 원본 파일명, 업로드된 파일명, 업로드된 파일 경로, 업로드된 파일의 URL를 응답하기 위해 Dto를 추가하세요.

S3FileDto.java

package com.example.amazon.s3.dto;

import lombok.Builder;
import lombok.Getter;
import lombok.Setter;
import lombok.ToString;

@Getter
@Setter
@ToString
@Builder
public class S3FileDto {

  private String originalFileName;
  private String uploadFileName;
  private String uploadFilePath;
  private String uploadFileUrl;
}



4_2. 파일 업로드는 AmazonS3Client의 putObject 메서드, 파일 삭제는 AmazonS3Client의 deleteObject 메서드를 사용하세요.

Amazon3SService.java

package com.example.amazon.s3.service;

import com.amazonaws.services.s3.AmazonS3Client;
import com.amazonaws.services.s3.model.ObjectMetadata;
import com.amazonaws.services.s3.model.PutObjectRequest;
import com.example.amazon.s3.dto.S3FileDto;
import java.io.IOException;
import java.io.InputStream;
import java.text.SimpleDateFormat;
import java.util.ArrayList;
import java.util.Date;
import java.util.List;
import java.util.Locale;
import java.util.UUID;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Service;
import org.springframework.web.multipart.MultipartFile;

@Slf4j
@RequiredArgsConstructor
@Service
public class Amazon3SService {

  @Value("${spring.s3.bucket}")
  private String bucketName;

  private final AmazonS3Client amazonS3Client;

  /**
   * S3로 파일 업로드
   */
  public List<S3FileDto> uploadFiles(String fileType, List<MultipartFile> multipartFiles) {

    List<S3FileDto> s3files = new ArrayList<>();

    String uploadFilePath = fileType + "/" + getFolderName();

    for (MultipartFile multipartFile : multipartFiles) {

      String originalFileName = multipartFile.getOriginalFilename();
      String uploadFileName = getUuidFileName(originalFileName);
      String uploadFileUrl = "";

      ObjectMetadata objectMetadata = new ObjectMetadata();
      objectMetadata.setContentLength(multipartFile.getSize());
      objectMetadata.setContentType(multipartFile.getContentType());

      try (InputStream inputStream = multipartFile.getInputStream()) {

        String keyName = uploadFilePath + "/" + uploadFileName; // ex) 구분/년/월/일/파일.확장자

        // S3에 폴더 및 파일 업로드
        amazonS3Client.putObject(
            new PutObjectRequest(bucketName, keyName, inputStream, objectMetadata));

        // TODO : 외부에 공개하는 파일인 경우 Public Read 권한을 추가, ACL 확인
        /*amazonS3Client.putObject(
            new PutObjectRequest(bucket, s3Key, inputStream, objectMetadata)
                .withCannedAcl(CannedAccessControlList.PublicRead));*/

        // S3에 업로드한 폴더 및 파일 URL
        uploadFileUrl = amazonS3Client.getUrl(bucketName, keyName).toString();

      } catch (IOException e) {
        e.printStackTrace();
        log.error("Filed upload failed", e);
      }

      s3files.add(
          S3FileDto.builder()
              .originalFileName(originalFileName)
              .uploadFileName(uploadFileName)
              .uploadFilePath(uploadFilePath)
              .uploadFileUrl(uploadFileUrl)
              .build());
    }

    return s3files;
  }

  /**
   * S3에 업로드된 파일 삭제
   */
  public String deleteFile(String uploadFilePath, String uuidFileName) {

    String result = "success";

    try {
      String keyName = uploadFilePath + "/" + uuidFileName; // ex) 구분/년/월/일/파일.확장자
      boolean isObjectExist = amazonS3Client.doesObjectExist(bucketName, keyName);
      if (isObjectExist) {
        amazonS3Client.deleteObject(bucketName, keyName);
      } else {
        result = "file not found";
      }
    } catch (Exception e) {
      log.debug("Delete File failed", e);
    }

    return result;
  }

  /**
   * UUID 파일명 반환
   */
  public String getUuidFileName(String fileName) {
    String ext = fileName.substring(fileName.indexOf(".") + 1);
    return UUID.randomUUID().toString() + "." + ext;
  }

  /**
   * 년/월/일 폴더명 반환
   */
  private String getFolderName() {
    SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd", Locale.getDefault());
    Date date = new Date();
    String str = sdf.format(date);
    return str.replace("-", "/");
  }
}



4_3. multipart/form-data의 Content-Type을 요청을 처리하기 위해 @RequestPart 어노테이션을 사용하세요.

AmazonS3Controller.java

package com.example.amazon.s3.controller;

import com.example.amazon.s3.service.Amazon3SService;
import java.util.List;
import lombok.RequiredArgsConstructor;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.DeleteMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RequestPart;
import org.springframework.web.multipart.MultipartFile;

@RequiredArgsConstructor
@Controller
public class AmazonS3Controller {

  private final Amazon3SService amazon3SService;

  @PostMapping("/uploads")
  public ResponseEntity<Object> uploadFiles(
      @RequestParam(value = "fileType") String fileType,
      @RequestPart(value = "files") List<MultipartFile> multipartFiles) {
    return ResponseEntity
        .status(HttpStatus.OK)
        .body(amazon3SService.uploadFiles(fileType, multipartFiles));
  }

  @DeleteMapping("/delete")
  public ResponseEntity<Object> deleteFile(
      @RequestParam(value = "uploadFilePath") String uploadFilePath,
      @RequestParam(value = "uuidFileName") String uuidFileName) {
    return ResponseEntity
        .status(HttpStatus.OK)
        .body(amazon3SService.deleteFile(uploadFilePath, uuidFileName));
  }
}

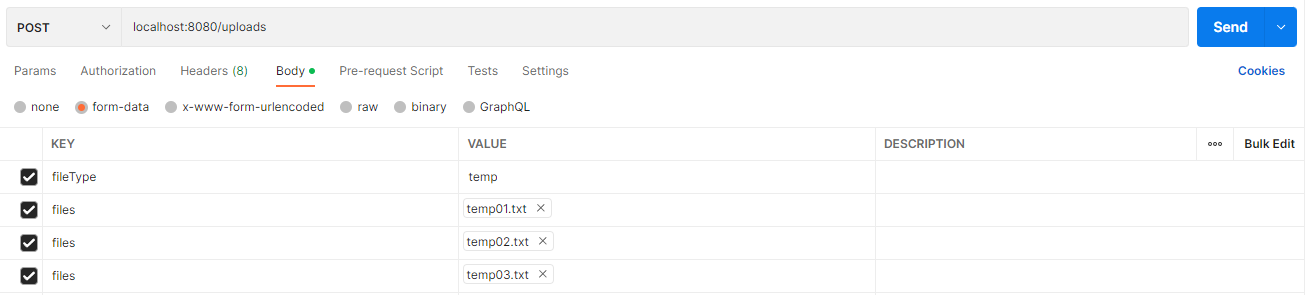

5. 파일 업로드 및 삭제 확인

Mock 파일 객체를 생성하기 위해 MockMultipartFile 클래스를 사용

public MockMultipartFile(
	String name, @Nullable String originalFilename, @Nullable String contentType, InputStream contentStream)
	throws IOException {

this(name, originalFilename, contentType, FileCopyUtils.copyToByteArray(contentStream));
}

• name : form-data의 key 값
• originalFilename : form-data의 value 값
• contentType : 파일의 형식
• contentStream : 바이트 단위의 입력 스트림, 파일을 바이트 단위로 입력할 수 있도록 FileInputStream 클래스를 사용

multipart 타입으로 요청하기 위해 MockMvcRequestBuilders 클래스의 multipart() 메서드를 사용

public static MockMultipartHttpServletRequestBuilder multipart(String urlTemplate, Object... uriVariables) {
	return new MockMultipartHttpServletRequestBuilder(urlTemplate, uriVariables);
}

AmazonS3ControllerTest.java

package com.example.amazon.s3.controller;

import static org.springframework.test.web.servlet.request.MockMvcRequestBuilders.multipart;
import static org.springframework.test.web.servlet.result.MockMvcResultHandlers.print;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.content;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.jsonPath;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.status;

import java.io.FileInputStream;
import lombok.extern.slf4j.Slf4j;
import org.junit.jupiter.api.DisplayName;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.web.servlet.AutoConfigureMockMvc;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.http.MediaType;
import org.springframework.mock.web.MockMultipartFile;
import org.springframework.test.context.ActiveProfiles;
import org.springframework.test.web.servlet.MockMvc;
import org.springframework.test.web.servlet.ResultActions;

@Slf4j
@AutoConfigureMockMvc
@SpringBootTest
@ActiveProfiles("local")
class AmazonS3ControllerTest {

  @Autowired
  MockMvc mockMvc;

  @DisplayName("uploadFiles_S3로 파일 업로드")
  @Test
  public void testUploadFiles() throws Exception {

    // Given
    String name = "files";
    String contentType = "text/plain";
    String path = "src/main/resources/static/temp";
    String fileType = "temp";
    String originalFileName01 = "temp01.txt";
    String originalFileName02 = "temp02.txt";
    String originalFileName03 = "temp03.txt";

    MockMultipartFile multipartFile01 = new MockMultipartFile(
        name,
        originalFileName01,
        contentType,
        new FileInputStream(path + "/" + originalFileName01));

    MockMultipartFile multipartFile02 = new MockMultipartFile(
        name,
        originalFileName02,
        contentType,
        new FileInputStream(path + "/" + originalFileName02));

    MockMultipartFile multipartFile03 = new MockMultipartFile(
        name,
        originalFileName03,
        contentType,
        new FileInputStream(path + "/" + originalFileName03));

    // When
    ResultActions resultActions = mockMvc.perform(
        multipart("/uploads")
            .file(multipartFile01)
            .file(multipartFile02)
            .file(multipartFile03)
            .param("fileType", fileType)
    );

    // Then
    resultActions
        .andExpect(status().isOk())
        .andExpect(content().contentType(MediaType.APPLICATION_JSON))
        .andExpect(jsonPath("$[0].originalFileName").value(originalFileName01))
        .andExpect(jsonPath("$[0].uploadFileName").isNotEmpty())
        .andExpect(jsonPath("$[0].uploadFilePath").isNotEmpty())
        .andExpect(jsonPath("$[0].uploadFileUrl").isNotEmpty())
        .andExpect(jsonPath("$[1].originalFileName").value(originalFileName02))
        .andExpect(jsonPath("$[1].uploadFileName").isNotEmpty())
        .andExpect(jsonPath("$[1].uploadFilePath").isNotEmpty())
        .andExpect(jsonPath("$[1].uploadFileUrl").isNotEmpty())
        .andExpect(jsonPath("$[2].originalFileName").value(originalFileName03))
        .andExpect(jsonPath("$[2].uploadFileName").isNotEmpty())
        .andExpect(jsonPath("$[2].uploadFilePath").isNotEmpty())
        .andExpect(jsonPath("$[2].uploadFileUrl").isNotEmpty())
        .andDo(print());
  }
}



Postman에서 multipart/form-data 요청 시 설정



소스 코드는 Github Repository - https://github.com/tychejin1218/blog.git 에서 amazon-s3 프로젝트를 참조하세요.
