[Spring] 게시판 만들기(19) - 파일 업로드(MultipartHttpServletRequest)

 스프링 프레임워크의 내장 객체인 CommonsMultipartResolver과 jquery.form.js를 이용한 파일 업로드 방식을 진행하겠습니다.



1. TALBE 생성

 첨부파일 정보를 저장할 테이블을 생성하세요. 첨부파일을 저장할 테이블은 한 개의 게시물에 여러 개에 첨부파일을 등록할 수 있도록 FILE_NO 컬럼을 추가하세요.

-- TB_BOARD_FILE 테이블 생성 및 코멘트 추가
CREATE TABLE BOARD.TB_BOARD_FILE (
      BOARD_SEQ INT Not Null COMMENT '게시글 번호'
    , FILE_NO INT Not Null COMMENT '첨부파일 번호'
    , FILE_NAME_KEY VARCHAR(200) COMMENT '첨부파일 암호화명'
    , FILE_NAME VARCHAR(100) COMMENT '첨부파일명'
    , FILE_PATH VARCHAR(200) COMMENT '첨부파일 경로'
    , FILE_SIZE VARCHAR(50) COMMENT '첨부파일 크기'
    , REMARK VARCHAR(1000) COMMENT '비고'
    , DEL_YN VARCHAR(1) COMMENT '삭제유무'
    , INS_USER_ID VARCHAR(20) COMMENT '입력자ID'
    , INS_DATE DATETIME COMMENT '입력일시'
    , UPD_USER_ID VARCHAR(20) COMMENT '수정자ID'
    , UPD_DATE DATETIME COMMENT '수정일시'
    , PRIMARY KEY (BOARD_SEQ, FILE_NO)
) COMMENT '게시판 첨부파일';

-- TB_BOARD 테이블 샘플 데이터 조회
SELECT *
  FROM BOARD.TB_BOARD_FILE;



2. 설정 파일 수정

2_1) pom.xml에 의존성 추가

commons-fileupload, ommons-io 의존성을 추가하세요.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.spring</groupId>
    <artifactId>board</artifactId>
    <name>board</name>
    <packaging>war</packaging>
    <version>1.0.0-BUILD-SNAPSHOT</version>

    <properties>
        <java-version>1.8</java-version>
        <org.springframework-version>4.3.6.RELEASE</org.springframework-version>
        <junit.version>4.12</junit.version>
        <org.aspectj-version>1.6.10</org.aspectj-version>
        <org.slf4j.version>1.7.21</org.slf4j.version>
        <logback.version>1.1.7</logback.version>
        <mysql.version>5.1.46</mysql.version>
        <mybatis.version>3.4.6</mybatis.version>
        <mybatis.spring.version>1.3.2</mybatis.spring.version>
        <jackson.version>2.9.5</jackson.version>
        <cglib.version>3.2.3</cglib.version>
    </properties>

    <dependencies>
        <!-- Spring -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${org.springframework-version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${org.springframework-version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${org.springframework-version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>${org.springframework-version}</version>
        </dependency>

        <!-- AspectJ -->
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjrt</artifactId>
            <version>${org.aspectj-version}</version>
        </dependency>
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>${org.aspectj-version}</version>
        </dependency>

        <!-- CGLIB -->
        <dependency>
            <groupId>cglib</groupId>
            <artifactId>cglib-nodep</artifactId>
            <version>${cglib.version}</version>
        </dependency>

        <!-- Logging -->
        <dependency>
            <groupId>org.slf4j</groupId>
              <artifactId>jcl-over-slf4j</artifactId>
              <version>${org.slf4j.version}</version>
        </dependency>
        <dependency>
              <groupId>ch.qos.logback</groupId>
              <artifactId>logback-classic</artifactId>
              <version>${logback.version}</version>
        </dependency>

        <!-- @Inject -->
        <dependency>
            <groupId>javax.inject</groupId>
            <artifactId>javax.inject</artifactId>
            <version>1</version>
        </dependency>

        <!-- Servlet -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>2.5</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>jsp-api</artifactId>
            <version>2.1</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>

        <!-- Test -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>${junit.version}</version>
            <scope>test</scope>
        </dependency>

        <!-- MySQL -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>${mysql.version}</version>
        </dependency>

        <!-- MyBatis -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>${mybatis.version}</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>${mybatis.spring.version}</version>
        </dependency>

        <!-- Jackson -->
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-annotations</artifactId>
            <version>${jackson.version}</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>${jackson.version}</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-core</artifactId>
            <version>${jackson.version}</version>
        </dependency>

        <!-- Apache Commons file upload  -->
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>1.2.2</version>
        </dependency>

        <!-- Apache Commons IO -->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-io</artifactId>
            <version>1.3.2</version>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <artifactId>maven-eclipse-plugin</artifactId>
                <version>2.9</version>
                <configuration>
                    <additionalProjectnatures>
                        <projectnature>org.springframework.ide.eclipse.core.springnature</projectnature>
                    </additionalProjectnatures>
                    <additionalBuildcommands>
                        <buildcommand>org.springframework.ide.eclipse.core.springbuilder</buildcommand>
                    </additionalBuildcommands>
                    <downloadSources>true</downloadSources>
                    <downloadJavadocs>true</downloadJavadocs>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>2.5.1</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <compilerArgument>-Xlint:all</compilerArgument>
                    <showWarnings>true</showWarnings>
                    <showDeprecation>true</showDeprecation>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.codehaus.mojo</groupId>
                <artifactId>exec-maven-plugin</artifactId>
                <version>1.2.1</version>
                <configuration>
                    <mainClass>org.test.int1.Main</mainClass>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>2.19.1</version>
                <configuration>
                  <skipTests>true</skipTests>
                </configuration>
              </plugin>
        </plugins>
    </build>
</project>



2_2) servlet-context.xml 수정
 Multipart을 사용하기 위해 MultipartResolver를 servlet-context.xml에 추가하고, 스프링에서 기본으로 제공하는 MultipartResolver는 CommonsMultipartResolver이므로 multipartResolver으로 빈 이름을 등록하세요.
 - maxUploadSize : 한 번에 최대 올릴 수 있는 파일 사이즈
 - maxInMemorySize : 해당 경로에 최대로 저장할 수 있는 파일 사이즈

<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xmlns="http://www.springframework.org/schema/mvc"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:beans="http://www.springframework.org/schema/beans"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd
        http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <!-- DispatcherServlet Context: defines this servlet's request-processing infrastructure -->

    <!-- Enables the Spring MVC @Controller programming model -->
    <annotation-driven />

    <!-- Handles HTTP GET requests for /resources/** by efficiently serving up static resources in the $/resources directory -->
    <resources mapping="/resources/**" location="/resources/" />
    <resources mapping="/css/**" location="/css/" />
    <resources mapping="/img/**" location="/img/" />
    <resources mapping="/js/**" location="/js/" />

    <!-- Resolves views selected for rendering by @Controllers to .jsp resources in the /WEB-INF/views directory -->
    <beans:bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <beans:property name="prefix" value="/WEB-INF/views/" />
        <beans:property name="suffix" value=".jsp" />
    </beans:bean>

    <context:component-scan base-package="com.spring.board" use-default-filters="false">
        <context:include-filter type="annotation" expression="org.springframework.stereotype.Controller" />
    </context:component-scan>

    <mvc:interceptors>
        <mvc:interceptor>
            <mvc:mapping path="/**"/>
            <beans:bean id="loggerInterceptor" class="com.spring.board.common.LoggerInterceptor"></beans:bean>
        </mvc:interceptor>
    </mvc:interceptors>

    <beans:bean class="org.springframework.http.converter.json.MappingJackson2HttpMessageConverter" />

    <!-- MultipartResolver 설정 -->
    <beans:bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <beans:property name="maxUploadSize" value="100000000" />
        <beans:property name="maxInMemorySize" value="100000000" />
    </beans:bean>

</beans:beans>



3. Back-End 파일 수정 및 추가

3_1) boardMapper.xml
 TB_BOARD 테이블에 1개의 게시글을 저장할 때 첨부파일이 존재하는 경우는 TB_BOARD_FILE 테이블에도 첨부파일 정보를 저장해야합니다. TB_BOARD_FILE 테이블는 TB_BOARD 테이블에 BOARD_SEQ 컬럼을 참조하기 때문에 TB_BOARD 테이블에 BOARD_SEQ 컬럼에 값을 알아야합니다.
 MySQL의 AUTO_INCREMENT로 설정된 컬럼(BOARD_SEQ)에 값을 먼저 가져올 수 없기 때문에 INSERT 후에 값을 가지고 와야합니다. 이런 경우에는 MySQL에서는 가장 최근에 성공적으로 실행된 INSERT 구문의 첫 번째 AUTO_INCREMENT 컬럼(BOARD_SEQ)의 값을 반환하는 LAST_INSERT_ID()라는 함수를 사용하여 TB_BOARD 테이블에 BOARD_SEQ 컬럼에 값을 알 수 있습니다.

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper  PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.spring.board.boardMapper">

    <select id="getBoardCnt" parameterType="com.spring.board.form.BoardForm" resultType="int">

        SELECT COUNT(*)
        FROM BOARD.TB_BOARD

    </select>

    <select id="getBoardList" parameterType="com.spring.board.form.BoardForm" resultType="com.spring.board.dto.BoardDto">

        SELECT *
        FROM ( SELECT BOARD_SEQ
                    , BOARD_RE_REF
                    , BOARD_RE_LEV
                    , BOARD_RE_SEQ
                    , BOARD_WRITER
                    , BOARD_SUBJECT
                    , BOARD_CONTENT
                    , BOARD_HITS
                    , DEL_YN
                    , INS_USER_ID
                    , CAST( DATE_FORMAT( INS_DATE, '%Y-%m-%d %H:%i:%s' ) AS CHAR(19) ) AS INS_DATE
                    , UPD_USER_ID
                    , CAST( DATE_FORMAT( UPD_DATE, '%Y-%m-%d %H:%i:%s' ) AS CHAR(19) ) AS UPD_DATE
               FROM BOARD.TB_BOARD
               ORDER BY BOARD_RE_REF DESC, BOARD_RE_SEQ ASC
              ) T1
        LIMIT #{limit} OFFSET #{offset}

    </select>

    <delete id="updateBoardHits" parameterType="com.spring.board.form.BoardForm">

        UPDATE BOARD.TB_BOARD
           SET BOARD_HITS = BOARD_HITS + 1
             , UPD_USER_ID = 'NONMEMBER'
             , UPD_DATE = NOW()
         WHERE BOARD_SEQ = #{board_seq}

    </delete>

    <select id="getBoardDetail" parameterType="com.spring.board.form.BoardForm" resultType="com.spring.board.dto.BoardDto">

        SELECT BOARD_SEQ
             , BOARD_RE_REF
             , BOARD_RE_LEV
             , BOARD_RE_SEQ
             , BOARD_WRITER
             , BOARD_SUBJECT
             , BOARD_CONTENT
             , BOARD_HITS
             , DEL_YN
             , INS_USER_ID
             , CAST( DATE_FORMAT( INS_DATE, '%Y-%m-%d %H:%i:%s' ) AS CHAR(19) ) AS INS_DATE
             , UPD_USER_ID
             , CAST( DATE_FORMAT( UPD_DATE, '%Y-%m-%d %H:%i:%s' ) AS CHAR(19) ) AS UPD_DATE
        FROM BOARD.TB_BOARD
        WHERE BOARD_SEQ = #{board_seq}

    </select>

    <select id="getBoardReRef" parameterType="com.spring.board.form.BoardForm" resultType="int">

        SELECT IFNULL(MAX(BOARD_RE_REF), 0) + 1
        FROM BOARD.TB_BOARD

    </select>

    <insert id="insertBoard" parameterType="com.spring.board.form.BoardForm">

        <selectKey resultType="int" keyProperty="board_seq" order="AFTER">

            SELECT LAST_INSERT_ID()

        </selectKey>

        INSERT
        INTO BOARD.TB_BOARD
        (
                BOARD_RE_REF
              , BOARD_RE_LEV
              , BOARD_RE_SEQ
              , BOARD_WRITER
              , BOARD_SUBJECT
              , BOARD_CONTENT
              , INS_USER_ID
              , INS_DATE
              , UPD_USER_ID
              , UPD_DATE
        )
        VALUES
        (
              #{board_re_ref}
             , 0
             , 0
             , #{board_writer}
             , #{board_subject}
             , #{board_content}
             , 'NONMEMBER'
             , NOW()
             , 'NONMEMBER'
             , NOW()
        )

    </insert>

    <insert id="insertBoardFile" parameterType="com.spring.board.form.BoardFileForm">

        <selectKey resultType="int" keyProperty="file_no" order="BEFORE">

            SELECT IFNULL(MAX(FILE_NO), 0) + 1
            FROM BOARD.TB_BOARD_FILE
            WHERE BOARD_SEQ = #{board_seq}

        </selectKey>

        INSERT
        INTO TB_BOARD_FILE
        (
              BOARD_SEQ
            , FILE_NO
            , FILE_NAME_KEY
            , FILE_NAME
            , FILE_PATH
            , FILE_SIZE
            , DEL_YN
            , INS_USER_ID
            , INS_DATE
            , UPD_USER_ID
            , UPD_DATE
        )
        VALUES
        (
              #{board_seq}
            , #{file_no}
            , #{file_name_key}
            , #{file_name}
            , #{file_path}
            , #{file_size}
            , 'N'
            , 'NONMEMBER'
            , NOW()
            , 'NONMEMBER'
            , NOW()
        )

    </insert>

    <insert id="insertBoardFail" parameterType="com.spring.board.form.BoardForm">

        INSERT
        INTO BOARD.TB_BOARD
        (
                BOARD_RE_REF
              , BOARD_RE_LEV
              , BOARD_RE_SEQ
              , BOARD_WRITER
              , BOARD_SUBJECT
              , BOARD_CONTENT
              , INS_USER_ID
              , INS_DATE
              , UPD_USER_ID
              , UPD_DATE
        )
        VALUES
        (
               0
             , 0
             , 0
             , #{board_writer1}
             , #{board_subject}
             , #{board_content}
             , 'NONMEMBER'
             , NOW()
             , 'NONMEMBER'
             , NOW()
        )

    </insert>

    <delete id="deleteBoard" parameterType="com.spring.board.form.BoardForm">

        DELETE
        FROM BOARD.TB_BOARD
        WHERE BOARD_SEQ = #{board_seq}

    </delete>

    <delete id="updateBoard" parameterType="com.spring.board.form.BoardForm">

        UPDATE BOARD.TB_BOARD
           SET BOARD_SUBJECT = #{board_subject}
             , BOARD_CONTENT = #{board_content}
             , UPD_USER_ID = 'NONMEMBER'
             , UPD_DATE = NOW()
         WHERE BOARD_SEQ = #{board_seq}

    </delete>

    <select id="getBoardReplyInfo" parameterType="com.spring.board.form.BoardForm" resultType="com.spring.board.dto.BoardDto">

        SELECT BOARD_SEQ
             , BOARD_RE_REF
             , BOARD_RE_LEV
             , BOARD_RE_SEQ
        FROM TB_BOARD
        WHERE BOARD_SEQ = #{board_parent_seq}

    </select>

    <delete id="updateBoardReSeq" parameterType="com.spring.board.form.BoardForm">

        UPDATE TB_BOARD
           SET BOARD_RE_SEQ = BOARD_RE_SEQ + 1
             , UPD_USER_ID = 'NONMEMBER'
             , UPD_DATE = NOW()
         WHERE BOARD_RE_REF = #{board_re_ref}
           AND BOARD_RE_SEQ > #{board_re_seq}

    </delete>

    <insert id="insertBoardReply" parameterType="com.spring.board.form.BoardForm">

        INSERT
        INTO BOARD.TB_BOARD
        (
                BOARD_RE_REF
              , BOARD_RE_LEV
              , BOARD_RE_SEQ
              , BOARD_WRITER
              , BOARD_SUBJECT
              , BOARD_CONTENT
              , INS_USER_ID
              , INS_DATE
              , UPD_USER_ID
              , UPD_DATE
        )
        VALUES
        (
               #{board_re_ref}
             , #{board_re_lev} + 1
             , #{board_re_seq} + 1
             , #{board_writer}
             , #{board_subject}
             , #{board_content}
             , 'NONMEMBER'
             , NOW()
             , 'NONMEMBER'
             , NOW()
        )

    </insert>

</mapper>



3_2) BoardForm.java
 스프링 프레임워크는 업로드 된 파일의 파일 내용을 가져오는데 사용할 수 있는 MultipartFile 클래스를 제공하므로 여러 개의 첨부파일 정보를 가지고 올 수 있도록 MultipartFile를 List로 선언하여 GET/SET을 추가하세요.

package com.spring.board.form;

import java.util.Date;
import java.util.List;

import org.springframework.web.multipart.MultipartFile;

public class BoardForm extends CommonForm {

    List<MultipartFile> files;
    int board_seq;
    int board_parent_seq;
    int board_re_ref;
    int board_re_lev;
    int board_re_seq;
    String board_writer;
    String board_subject;
    String board_content;
    int board_hits;
    String del_yn;
    String ins_user_id;
    Date ins_date;
    String upd_user_id;
    Date upd_date;
    String search_type;
    String board_file;

    public List<MultipartFile> getFiles() {
        return files;
    }

    public void setFiles(List<MultipartFile> files) {
        this.files = files;
    }

    public int getBoard_seq() {
        return board_seq;
    }

    public void setBoard_seq(int board_seq) {
        this.board_seq = board_seq;
    }

    public int getBoard_parent_seq() {
        return board_parent_seq;
    }

    public void setBoard_parent_seq(int board_parent_seq) {
        this.board_parent_seq = board_parent_seq;
    }

    public int getBoard_re_ref() {
        return board_re_ref;
    }

    public void setBoard_re_ref(int board_re_ref) {
        this.board_re_ref = board_re_ref;
    }

    public int getBoard_re_lev() {
        return board_re_lev;
    }

    public void setBoard_re_lev(int board_re_lev) {
        this.board_re_lev = board_re_lev;
    }

    public int getBoard_re_seq() {
        return board_re_seq;
    }

    public void setBoard_re_seq(int board_re_seq) {
        this.board_re_seq = board_re_seq;
    }

    public String getBoard_writer() {
        return board_writer;
    }

    public void setBoard_writer(String board_writer) {
        this.board_writer = board_writer;
    }

    public String getBoard_subject() {
        return board_subject;
    }

    public void setBoard_subject(String board_subject) {
        this.board_subject = board_subject;
    }

    public String getBoard_content() {
        return board_content;
    }

    public void setBoard_content(String board_content) {
        this.board_content = board_content;
    }

    public int getBoard_hits() {
        return board_hits;
    }

    public void setBoard_hits(int board_hits) {
        this.board_hits = board_hits;
    }

    public String getDel_yn() {
        return del_yn;
    }

    public void setDel_yn(String del_yn) {
        this.del_yn = del_yn;
    }

    public String getIns_user_id() {
        return ins_user_id;
    }

    public void setIns_user_id(String ins_user_id) {
        this.ins_user_id = ins_user_id;
    }

    public Date getIns_date() {
        return ins_date;
    }

    public void setIns_date(Date ins_date) {
        this.ins_date = ins_date;
    }

    public String getUpd_user_id() {
        return upd_user_id;
    }

    public void setUpd_user_id(String upd_user_id) {
        this.upd_user_id = upd_user_id;
    }

    public Date getUpd_date() {
        return upd_date;
    }

    public void setUpd_date(Date upd_date) {
        this.upd_date = upd_date;
    }

    public String getSearch_type() {
        return search_type;
    }

    public void setSearch_type(String search_type) {
        this.search_type = search_type;
    }

    public String getBoard_file() {
        return board_file;
    }

    public void setBoard_file(String board_file) {
        this.board_file = board_file;
    }
}



3_3) BoardFileForm.java

package com.spring.board.form;

import java.util.Date;

public class BoardFileForm {

    int board_seq;
    int file_no;
    String file_name_key;
    String file_name;
    String file_path;
    String file_size;
    String remark;
    String del_yn;
    String ins_user_id;
    Date ins_date;
    String upd_user_id;
    Date upd_date;

    public int getBoard_seq() {
        return board_seq;
    }
    public void setBoard_seq(int board_seq) {
        this.board_seq = board_seq;
    }
    public int getFile_no() {
        return file_no;
    }
    public void setFile_no(int file_no) {
        this.file_no = file_no;
    }
    public String getFile_name_key() {
        return file_name_key;
    }
    public void setFile_name_key(String file_name_key) {
        this.file_name_key = file_name_key;
    }
    public String getFile_name() {
        return file_name;
    }
    public void setFile_name(String file_name) {
        this.file_name = file_name;
    }
    public String getFile_path() {
        return file_path;
    }
    public void setFile_path(String file_path) {
        this.file_path = file_path;
    }
    public String getFile_size() {
        return file_size;
    }
    public void setFile_size(String file_size) {
        this.file_size = file_size;
    }
    public String getRemark() {
        return remark;
    }
    public void setRemark(String remark) {
        this.remark = remark;
    }
    public String getDel_yn() {
        return del_yn;
    }
    public void setDel_yn(String del_yn) {
        this.del_yn = del_yn;
    }
    public String getIns_user_id() {
        return ins_user_id;
    }
    public void setIns_user_id(String ins_user_id) {
        this.ins_user_id = ins_user_id;
    }
    public Date getIns_date() {
        return ins_date;
    }
    public void setIns_date(Date ins_date) {
        this.ins_date = ins_date;
    }
    public String getUpd_user_id() {
        return upd_user_id;
    }
    public void setUpd_user_id(String upd_user_id) {
        this.upd_user_id = upd_user_id;
    }
    public Date getUpd_date() {
        return upd_date;
    }
    public void setUpd_date(Date upd_date) {
        this.upd_date = upd_date;
    }
}

package com.spring.board.form;

import java.util.Date;

public class BoardFileForm {

    int board_seq;
    int file_no;
    String file_name_key;
    String file_name;
    String file_path;
    String file_size;
    String remark;
    String del_yn;
    String ins_user_id;
    Date ins_date;
    String upd_user_id;
    Date upd_date;

    public int getBoard_seq() {
        return board_seq;
    }
    public void setBoard_seq(int board_seq) {
        this.board_seq = board_seq;
    }
    public int getFile_no() {
        return file_no;
    }
    public void setFile_no(int file_no) {
        this.file_no = file_no;
    }
    public String getFile_name_key() {
        return file_name_key;
    }
    public void setFile_name_key(String file_name_key) {
        this.file_name_key = file_name_key;
    }
    public String getFile_name() {
        return file_name;
    }
    public void setFile_name(String file_name) {
        this.file_name = file_name;
    }
    public String getFile_path() {
        return file_path;
    }
    public void setFile_path(String file_path) {
        this.file_path = file_path;
    }
    public String getFile_size() {
        return file_size;
    }
    public void setFile_size(String file_size) {
        this.file_size = file_size;
    }
    public String getRemark() {
        return remark;
    }
    public void setRemark(String remark) {
        this.remark = remark;
    }
    public String getDel_yn() {
        return del_yn;
    }
    public void setDel_yn(String del_yn) {
        this.del_yn = del_yn;
    }
    public String getIns_user_id() {
        return ins_user_id;
    }
    public void setIns_user_id(String ins_user_id) {
        this.ins_user_id = ins_user_id;
    }
    public Date getIns_date() {
        return ins_date;
    }
    public void setIns_date(Date ins_date) {
        this.ins_date = ins_date;
    }
    public String getUpd_user_id() {
        return upd_user_id;
    }
    public void setUpd_user_id(String upd_user_id) {
        this.upd_user_id = upd_user_id;
    }
    public Date getUpd_date() {
        return upd_date;
    }
    public void setUpd_date(Date upd_date) {
        this.upd_date = upd_date;
    }
}



3_4) BoardDao.java

package com.spring.board.dao;

import java.util.List;

import javax.annotation.Resource;

import org.apache.ibatis.session.SqlSession;
import org.springframework.stereotype.Repository;

import com.spring.board.dto.BoardDto;
import com.spring.board.form.BoardFileForm;
import com.spring.board.form.BoardForm;

@Repository
public class BoardDao {

    @Resource(name = "sqlSession")
    private SqlSession sqlSession;

    private static final String NAMESPACE = "com.spring.board.boardMapper";

    /** 게시판 - 목록 수 */
    public int getBoardCnt(BoardForm boardForm) throws Exception {

        return sqlSession.selectOne(NAMESPACE + ".getBoardCnt", boardForm);
    }

    /** 게시판 - 목록 조회 */
    public List<BoardDto> getBoardList(BoardForm boardForm) throws Exception {

        return sqlSession.selectList(NAMESPACE + ".getBoardList", boardForm);
    }

    /** 게시판 - 조회 수 수정 */
    public int updateBoardHits(BoardForm boardForm) throws Exception {

        return sqlSession.update(NAMESPACE + ".updateBoardHits", boardForm);
    }

    /** 게시판 - 상세 조회 */
    public BoardDto getBoardDetail(BoardForm boardForm) throws Exception {

        return sqlSession.selectOne(NAMESPACE + ".getBoardDetail", boardForm);
    }

    /** 게시판 - 그룹 번호 조회 */
    public int getBoardReRef(BoardForm boardForm) throws Exception {

        return sqlSession.selectOne(NAMESPACE + ".getBoardReRef", boardForm);
    }

    /** 게시판 - 등록 */
    public int insertBoard(BoardForm boardForm) throws Exception {
        return sqlSession.insert(NAMESPACE + ".insertBoard", boardForm);
    }

    /** 게시판 - 첨부파일 등록 */
    public int insertBoardFile(BoardFileForm boardFileForm) throws Exception {
        return sqlSession.insert(NAMESPACE + ".insertBoardFile", boardFileForm);
    }

    /** 게시판 - 등록 실패(트랜잭션 테스트) */
    public int insertBoardFail(BoardForm boardForm) throws Exception {
        return sqlSession.insert(NAMESPACE + ".insertBoardFail", boardForm);
    }

    /** 게시판 - 삭제 */
    public int deleteBoard(BoardForm boardForm) throws Exception {

        return sqlSession.delete(NAMESPACE + ".deleteBoard", boardForm);
    }

    /** 게시판 - 수정 */
    public int updateBoard(BoardForm boardForm) throws Exception {

        return sqlSession.update(NAMESPACE + ".updateBoard", boardForm);
    }

    /** 게시판 - 답글 정보  조회 */
    public BoardDto getBoardReplyInfo(BoardForm boardForm) throws Exception {
        return sqlSession.selectOne(NAMESPACE + ".getBoardReplyInfo", boardForm);
    }

    /** 게시판 - 답글의 순서 수정 */
    public int updateBoardReSeq(BoardForm boardForm) throws Exception {

        return sqlSession.update(NAMESPACE + ".updateBoardReSeq", boardForm);
    }

    /** 게시판 - 답글 등록 */
    public int insertBoardReply(BoardForm boardForm) throws Exception {
        return sqlSession.insert(NAMESPACE + ".insertBoardReply", boardForm);
    }
}



3_5) BoardService.java
 Mybatis에 ServiceKey를 중복하여 사용할 수 없기 때문에 BoardReRef를 조회하는 쿼리를 추가하세요.

package com.spring.board.service;

import java.io.File;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.UUID;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.web.multipart.MultipartFile;

import com.spring.board.common.PagingUtil;
import com.spring.board.common.ResultUtil;
import com.spring.board.dao.BoardDao;
import com.spring.board.dto.BoardDto;
import com.spring.board.dto.CommonDto;
import com.spring.board.form.BoardFileForm;
import com.spring.board.form.BoardForm;
import com.spring.board.form.CommonForm;

@Service
public class BoardService {

    @Autowired
    private BoardDao boardDao;

    /** 게시판 - 목록 조회 */
    public ResultUtil getBoardList(BoardForm boardForm) throws Exception {

        ResultUtil resultUtil = new ResultUtil();

        CommonDto commonDto = new CommonDto();

        int totalCount = boardDao.getBoardCnt(boardForm);
        if (totalCount != 0) {
            CommonForm commonForm = new CommonForm();
            commonForm.setFunction_name(boardForm.getFunction_name());
            commonForm.setCurrent_page_no(boardForm.getCurrent_page_no());
            commonForm.setCount_per_page(10);
            commonForm.setCount_per_list(10);
            commonForm.setTatal_list_count(totalCount);
            commonDto = PagingUtil.setPageUtil(commonForm);
        }

        boardForm.setLimit(commonDto.getLimit());
        boardForm.setOffset(commonDto.getOffset());

        List<BoardDto> list = boardDao.getBoardList(boardForm);

        HashMap<String, Object> resultMap = new HashMap<String, Object>();
        resultMap.put("list", list);
        resultMap.put("totalCount", totalCount);
        resultMap.put("pagination", commonDto.getPagination());

        resultUtil.setData(resultMap);
        resultUtil.setState("SUCCESS");

        return resultUtil;
    }

    /** 게시판 - 목록 조회 */
    /*
     * public List<BoardDto> getBoardList(BoardForm boardForm) throws Exception {
     *
     * return boardDao.getBoardList(boardForm); }
     */

    /** 게시판 - 상세 조회 */
    public BoardDto getBoardDetail(BoardForm boardForm) throws Exception {

        BoardDto boardDto = new BoardDto();

        String searchType = boardForm.getSearch_type();

        if ("S".equals(searchType)) {

            int updateCnt = boardDao.updateBoardHits(boardForm);

            if (updateCnt > 0) {
                boardDto = boardDao.getBoardDetail(boardForm);
            }

        } else {

            boardDto = boardDao.getBoardDetail(boardForm);
        }

        return boardDto;
    }

    /** 게시판 - 등록 */
    public BoardDto insertBoard(BoardForm boardForm) throws Exception {

        BoardDto boardDto = new BoardDto();

        int insertCnt = 0;

        int boardReRef = boardDao.getBoardReRef(boardForm);
        boardForm.setBoard_re_ref(boardReRef);

        insertCnt = boardDao.insertBoard(boardForm);

        List<BoardFileForm> boardFileList = getBoardFileInfo(boardForm);

        for (BoardFileForm boardFileForm : boardFileList) {
            boardDao.insertBoardFile(boardFileForm);
        }

        if (insertCnt > 0) {
            boardDto.setResult("SUCCESS");
        } else {
            boardDto.setResult("FAIL");
        }

        return boardDto;
    }

    /** 게시판 - 첨부파일 정보 조회 */
    public List<BoardFileForm> getBoardFileInfo(BoardForm boardForm) throws Exception {

        List<MultipartFile> files = boardForm.getFiles();

        List<BoardFileForm> boardFileList = new ArrayList<BoardFileForm>();

        BoardFileForm boardFileForm = new BoardFileForm();

        int boardSeq = boardForm.getBoard_seq();
        String fileName = null;
        String fileExt = null;
        String fileNameKey = null;
        String fileSize = null;

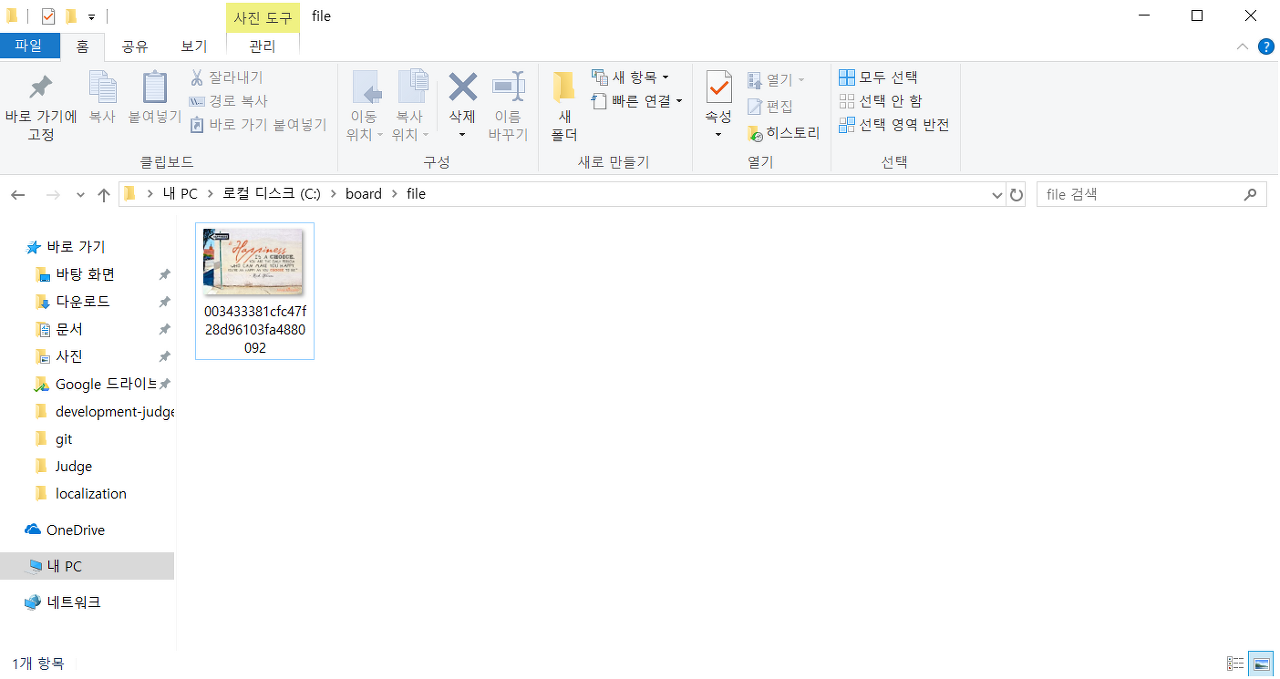

        // 파일이 저장될 Path 설정
        String filePath = "C:\\board\\file";

        if (files != null && files.size() > 0) {

            File file = new File(filePath);

            // 디렉토리가 없으면 생성
            if (file.exists() == false) {
                file.mkdirs();
            }

            for (MultipartFile multipartFile : files) {

                fileName = multipartFile.getOriginalFilename();
                fileExt = fileName.substring(fileName.lastIndexOf("."));
                // 파일명 변경(uuid로 암호화) + 확장자
                fileNameKey = getRandomString() + fileExt;
                fileSize = String.valueOf(multipartFile.getSize());

                // 설정한 Path에 파일 저장
                file = new File(filePath + "/" + fileNameKey);

                multipartFile.transferTo(file);

                boardFileForm = new BoardFileForm();
                boardFileForm.setBoard_seq(boardSeq);
                boardFileForm.setFile_name(fileName);
                boardFileForm.setFile_name_key(fileNameKey);
                boardFileForm.setFile_path(filePath);
                boardFileForm.setFile_size(fileSize);
                boardFileList.add(boardFileForm);
            }
        }

        return boardFileList;
    }

    /** 게시판 - 삭제 */
    public BoardDto deleteBoard(BoardForm boardForm) throws Exception {

        BoardDto boardDto = new BoardDto();

        int deleteCnt = boardDao.deleteBoard(boardForm);

        if (deleteCnt > 0) {
            boardDto.setResult("SUCCESS");
        } else {
            boardDto.setResult("FAIL");
        }

        return boardDto;
    }

    /** 게시판 - 수정 */
    public BoardDto updateBoard(BoardForm boardForm) throws Exception {

        BoardDto boardDto = new BoardDto();

        int deleteCnt = boardDao.updateBoard(boardForm);

        if (deleteCnt > 0) {
            boardDto.setResult("SUCCESS");
        } else {
            boardDto.setResult("FAIL");
        }

        return boardDto;
    }

    /** 게시판 - 답글 등록 */
    public BoardDto insertBoardReply(BoardForm boardForm) throws Exception {

        BoardDto boardDto = new BoardDto();

        BoardDto boardReplayInfo = boardDao.getBoardReplyInfo(boardForm);

        boardForm.setBoard_seq(boardReplayInfo.getBoard_seq());
        boardForm.setBoard_re_lev(boardReplayInfo.getBoard_re_lev());
        boardForm.setBoard_re_ref(boardReplayInfo.getBoard_re_ref());
        boardForm.setBoard_re_seq(boardReplayInfo.getBoard_re_seq());

        int insertCnt = 0;

        insertCnt += boardDao.updateBoardReSeq(boardForm);

        insertCnt += boardDao.insertBoardReply(boardForm);

        if (insertCnt > 0) {
            boardDto.setResult("SUCCESS");
        } else {
            boardDto.setResult("FAIL");
        }

        return boardDto;
    }

    /** 32글자의 랜덤한 문자열(숫자포함) 생성 */
    public static String getRandomString() {

        return UUID.randomUUID().toString().replaceAll("-", "");
    }
}



MulripartFile 인터페이스의 주요 메서드
String getName() : 파라미터 이름을 리턴
String getOriginalFilename() : 업로드 한 파일의 이름을 리턴
String isEmpty() : 업로드 한 파일이 존재하지 않는 경우 true를 리턴
long getSize() : 업로드 한 파일의 크기를 리턴
byte[ ] getBytes() throws IOExcetion : 업로드 한 파일 데이터를 리턴
InputStream getInputStream() throws  IOException : 업로드한 파일 데이터를 읽어노는 InputStream을 리턴
void transferTo(File dest) throws IOException : 업로드 한 파일 데이터를 지정한 파일에 저장



3_6) BoardController.java 수정

package com.spring.board.controller;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import com.spring.board.common.ResultUtil;
import com.spring.board.dto.BoardDto;
import com.spring.board.form.BoardForm;
import com.spring.board.service.BoardService;

@Controller
@RequestMapping(value = "/board")
public class BoardController {

    @Autowired
    private BoardService boardService;

    /** 게시판 - 목록 페이지 이동 */
    @RequestMapping(value = "/boardList")
    public String boardList(HttpServletRequest request, HttpServletResponse response) throws Exception {

        return "board/boardList";
    }

    /** 게시판 - 목록 조회 */
    @RequestMapping(value = "/getBoardList")
    @ResponseBody
    public ResultUtil getBoardList(HttpServletRequest request, HttpServletResponse response, BoardForm boardForm) throws Exception {

        ResultUtil resultUtils = boardService.getBoardList(boardForm);

        return resultUtils;
    }

    /** 게시판 - 상세 페이지 이동 */
    @RequestMapping(value = "/boardDetail")
    public String boardDetail(HttpServletRequest request, HttpServletResponse response) throws Exception {

        return "board/boardDetail";
    }

    /** 게시판 - 상세 조회 */
    @RequestMapping(value = "/getBoardDetail")
    @ResponseBody
    public BoardDto getBoardDetail(HttpServletRequest request, HttpServletResponse response, BoardForm boardForm) throws Exception {

        BoardDto boardDto = boardService.getBoardDetail(boardForm);

        return boardDto;
    }

    /** 게시판 - 작성 페이지 이동 */
    @RequestMapping(value = "/boardWrite")
    public String boardWrite(HttpServletRequest request, HttpServletResponse response) throws Exception {

        return "board/boardWrite";
    }

    /** 게시판 - 등록 */
    @RequestMapping(value = "/insertBoard")
    @ResponseBody
    public BoardDto insertBoard(HttpServletRequest request, HttpServletResponse response, BoardForm boardForm) throws Exception {

        BoardDto boardDto = boardService.insertBoard(boardForm);

        return boardDto;
    }

    /** 게시판 - 삭제 */
    @RequestMapping(value = "/deleteBoard")
    @ResponseBody
    public BoardDto deleteBoard(HttpServletRequest request, HttpServletResponse response, BoardForm boardForm) throws Exception {

        BoardDto boardDto = boardService.deleteBoard(boardForm);

        return boardDto;
    }

    /** 게시판 - 수정 페이지 이동 */
    @RequestMapping(value = "/boardUpdate")
    public String boardUpdate(HttpServletRequest request, HttpServletResponse response) throws Exception {

        return "board/boardUpdate";
    }

    /** 게시판 - 수정 */
    @RequestMapping(value = "/updateBoard")
    @ResponseBody
    public BoardDto updateBoard(HttpServletRequest request, HttpServletResponse response, BoardForm boardForm) throws Exception {

        BoardDto boardDto = boardService.updateBoard(boardForm);

        return boardDto;
    }

    /** 게시판 - 답글 페이지 이동 */
    @RequestMapping(value = "/boardReply")
    public String boardReply(HttpServletRequest request, HttpServletResponse response) throws Exception {

        return "board/boardReply";
    }

    /** 게시판 - 답글 등록 */
    @RequestMapping(value = "/insertBoardReply")
    @ResponseBody
    public BoardDto insertBoardReply(HttpServletRequest request, HttpServletResponse response, BoardForm boardForm) throws Exception {

        BoardDto boardDto = boardService.insertBoardReply(boardForm);

        return boardDto;
    }
}



4. Front-End 파일 수정 및 추가
4_1) jquery.form.js 추가
jquery.form.js룰 다운로드 후 추가하세요.

jquery.form.js

0.04MB

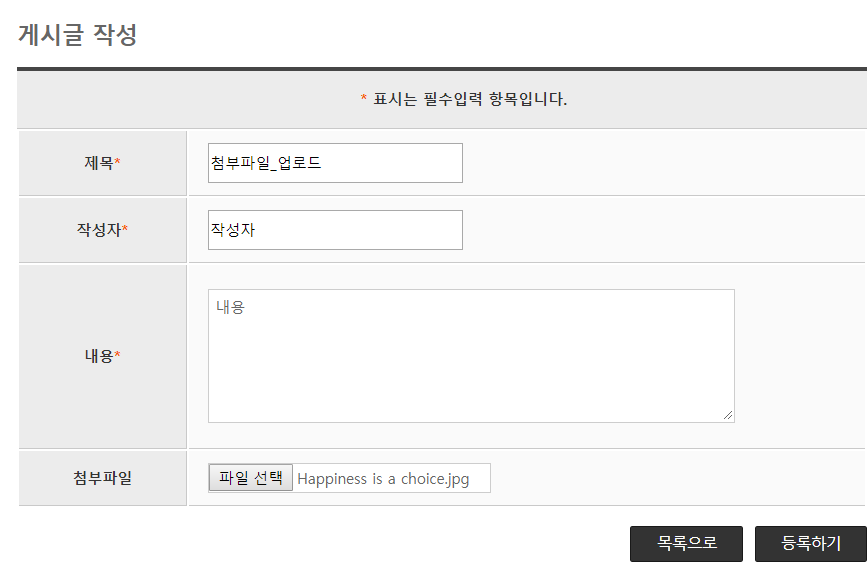

4_2) boardWrite.jsp 수정
 - ajaxForm을 사용하기 위해서 jquery.form.js를 추가한 후에 import 하세요.
 - <form> 태그에 enctype="multipart/form-data"을 추가하세요.
 - <form> 태그에 method="POST"로 설정하세요.
 - <input> 태그에 name은 BoardForm에 추가한 GET/SET명에 배열로 추가하세요. 예) files[0], files[1], files[2]

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>게시판 작성</title>

<!-- 공통 CSS -->
<link rel="stylesheet" type="text/css" href="/css/common/common.css"/>

<!-- 공통 JavaScript -->
<script type="text/javascript" src="/js/common/jquery.js"></script>
<script type="text/javascript" src="/js/common/jquery.form.js"></script>
<script type="text/javascript">

    $(document).ready(function(){

    });

    /** 게시판 - 목록 페이지 이동 */
    function goBoardList(){
        location.href = "/board/boardList";
    }

    /** 게시판 - 작성  */
    function insertBoard(){

        var boardSubject = $("#board_subject").val();
        var boardContent = $("#board_content").val();

        if (boardSubject == ""){
            alert("제목을 입력해주세요.");
            $("#board_subject").focus();
            return;
        }

        if (boardContent == ""){
            alert("내용을 입력해주세요.");
            $("#board_content").focus();
            return;
        }

        var yn = confirm("게시글을 등록하시겠습니까?");
        if(yn){

            var filesChk = $("input[name='files[0]']").val();
            if(filesChk == ""){
                $("input[name='files[0]']").remove();
            }

            $("#boardForm").ajaxForm({

                url        : "/board/insertBoard",
                enctype    : "multipart/form-data",
                cache   : false,
                async   : true,
                type    : "POST",
                success : function(obj) {
                    insertBoardCallback(obj);
                },
                error     : function(xhr, status, error) {}

            }).submit();
        }
    }

    /** 게시판 - 작성 콜백 함수 */
    function insertBoardCallback(obj){

        if(obj != null){

            var result = obj.result;

            if(result == "SUCCESS"){
                alert("게시글 등록을 성공하였습니다.");
                goBoardList();
            } else {
                alert("게시글 등록을 실패하였습니다.");
                return;
            }
        }
    }

</script>
</head>
<body>
<div id="wrap">
    <div id="container">
        <div class="inner">
            <h2>게시글 작성</h2>
            <form id="boardForm" name="boardForm" action="/board/insertBoard" enctype="multipart/form-data" method="post" onsubmit="return false;">
                <table width="100%" class="table02">
                <caption><strong><span class="t_red">*</span> 표시는 필수입력 항목입니다.</strong></caption>
                    <colgroup>
                        <col width="20%">
                        <col width="*">
                    </colgroup>
                    <tbody id="tbody">
                        <tr>
                            <th>제목<span class="t_red">*</span></th>
                            <td><input id="board_subject" name="board_subject" value="" class="tbox01"/></td>
                        </tr>
                        <tr>
                            <th>작성자<span class="t_red">*</span></th>
                            <td><input id="board_writer" name="board_writer" value="" class="tbox01"/></td>
                        </tr>
                        <tr>
                            <th>내용<span class="t_red">*</span></th>
                            <td><textarea id="board_content" name="board_content" cols="10" rows="5" class="textarea01"></textarea></td>
                        </tr>
                        <tr>
                            <th scope="row">첨부파일</th>
                            <td><input type="file" id="files[0]" name="files[0]" value=""></td>
                        </tr>
                    </tbody>
                </table>
            </form>
            <div class="btn_right mt15">
                <button type="button" class="btn black mr5" onclick="javascript:goBoardList();">목록으로</button>
                <button type="button" class="btn black" onclick="javascript:insertBoard();">등록하기</button>
            </div>
        </div>
    </div>
</div>
</body>
</html>



5. 첨부파일 업로드 확인
 FILE_PATH 위치에 업로드한 첨부파일이 존재하는지 확인하세요.



소스 코드는 Github Repository - https://github.com/tychejin1218/board_v1 (branch : section19) 를 참조하세요.
Github에서 프로젝트 가져오기 - https://tychejin.tistory.com/33
